Description

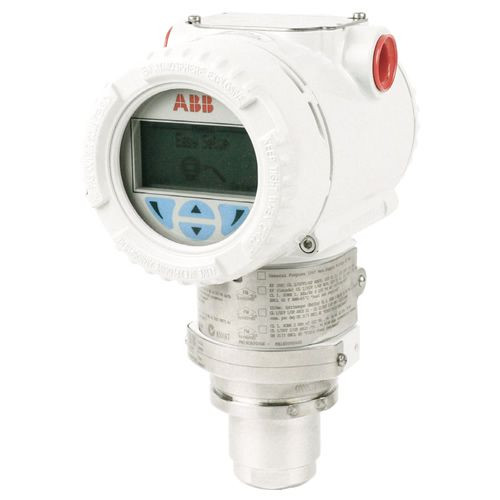

The compact, robust transmitter housing is made of 316 stainless steel
as a standard. Due to its high corrosion resistance it can be used in a
wide variety of process and ambient conditions without any problems.
The user friendly display allows simple and intuitive local transmitter operation. Full device support, including diagnostic / maintenance information is guaranteed via the Device Type Manager software used in either a stand alone or system engineering tool. The transmitter provides local zero and span adjustments even without display.
261GS - 261GS Gauge pressure transmitter, compact class, base accuracy 0.1 % |
Sensor - Span Limits | F | 40 kPa / 400 mbar / 160 in. H2O (300 mm Hg) |
Diaphragm Material / Fill Fluid | K | Hastelloy C-276 / Silicone oil, NACE |
Process Connection Material / Process Connection | T | AISI 316L SST (1.4404) / 1/2-14 NPT male, NACE |
Gasket | N | None, NACE |
Electronic Housing Material / Electrical Connection | S | AISI 316L SST (1.4404) / 1/2-14 NPT (without cable gland) |
Output | 1 | HART digital communication and 4 ... 20 mA |
Integrated Digital Display (LCD) | L1 | With integrated LCD display |
Mounting Bracket Shape / Material | B2 | For pipe mounting / AISI 304 SST (1.4301) |
Specifications
Instrument Warranty is subjected to specific Manufacturer.
