Description

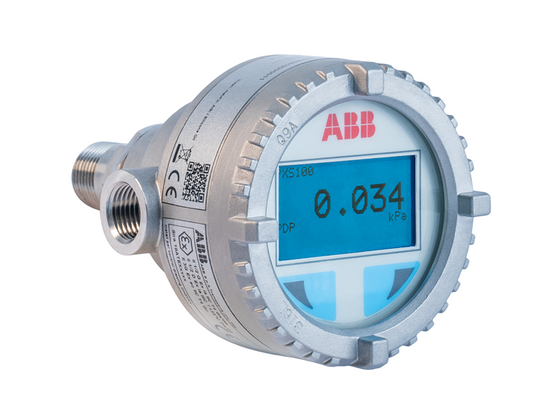

PGS100DS9A1ABYSHD4HCM
Sensor Range D 50 and 1000 kPa (0.5 and 10 bar, 7.25 and 145 psi)
Maximum working pressure S9 Standard by design according to sensor range
Diaphragm material A AISI 316L ss
Fill Fluid 1 Silicone oil
Process Connection Material A AISI 316L ss
Process Connection Size B 1/2 in - 14 NPT male / 1/4 in - 18 NPT female (adapter compatible)
Bolts and Gaskets Y None
Housing Material / Electrical Connection S AISI 316L ss / 1/2 in. -14 NPT female thread (through adapter - supplied loose)
Protocol/Output H HART / 4 to 20 mA (including Easy Set up)
Display D4 Backlit glass touch LCD display with 2-button keypad
Hazardous Area Certifications HCM CSA approvals (USA and Canada) IS (Gas and Dust)
