Description

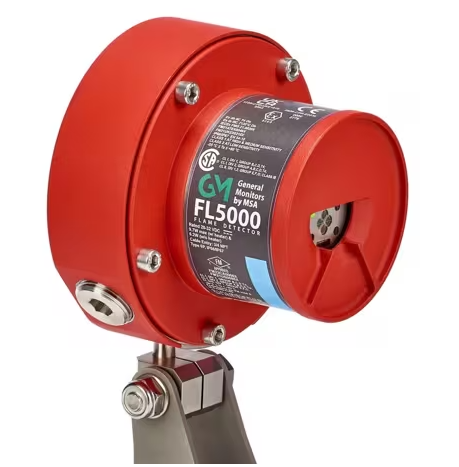

The MSA General Monitors® FL5000 is an advanced multi-spectrum infrared (MSIR) flame detector that provides superior false alarm discrimination over long distances. The FL5000 employs a multi-spectral optical IR sensing array with sophisticated Artificial Neural Networks (ANN) to reliably discriminate between actual flames and the vast majority of false alarm sources.
- Offers solid performance and reliability, backed by a five-year warranty
- Built-in optical heater helps suppress false alarms caused by frost or condensation build up
- Swift setup and diagnostics enables easy configuration and event log downloads from mobile devices
Applications
Compressor Stations
Refineries
Offshore Platforms
Fuel Loading Facilities
Aircraft Hangars
Distance
310 ft (95 m) for n-Heptane fire
Heated Optics
Yes
Housing
316 Stainless Steel, Red Powder Coated
Markets
General Industry
Oil & Gas
Utilities
Product Diameter
5.44" (138 mm) - base, 3.50" (89 mm) - optical housing
Product Height
4.3" (109 mm)
Product Weight
7.6 lbs (3.45 kg) - without mounting bracket
Response Time
10 sec
Spectral Range
2-5 microns (IR)
Warranty
5 Years
