Description
Typical delivery: 2-3 weeks
STANDARD FEATURES:
PSE4-A2 sensor - clamp-on, single head ultrasonic for 0.5” - 180”
(12.5 mm to 4.5 m) ID pipes or larger
Sensor cable - 12 ft / 3.5 m shielded coaxial pair with connector
Installation Hardware – PC4 Sensor mounting kit with SuperLube ® coupling
compound and stainless steel clamps for pipes up to 32” (80 cm)

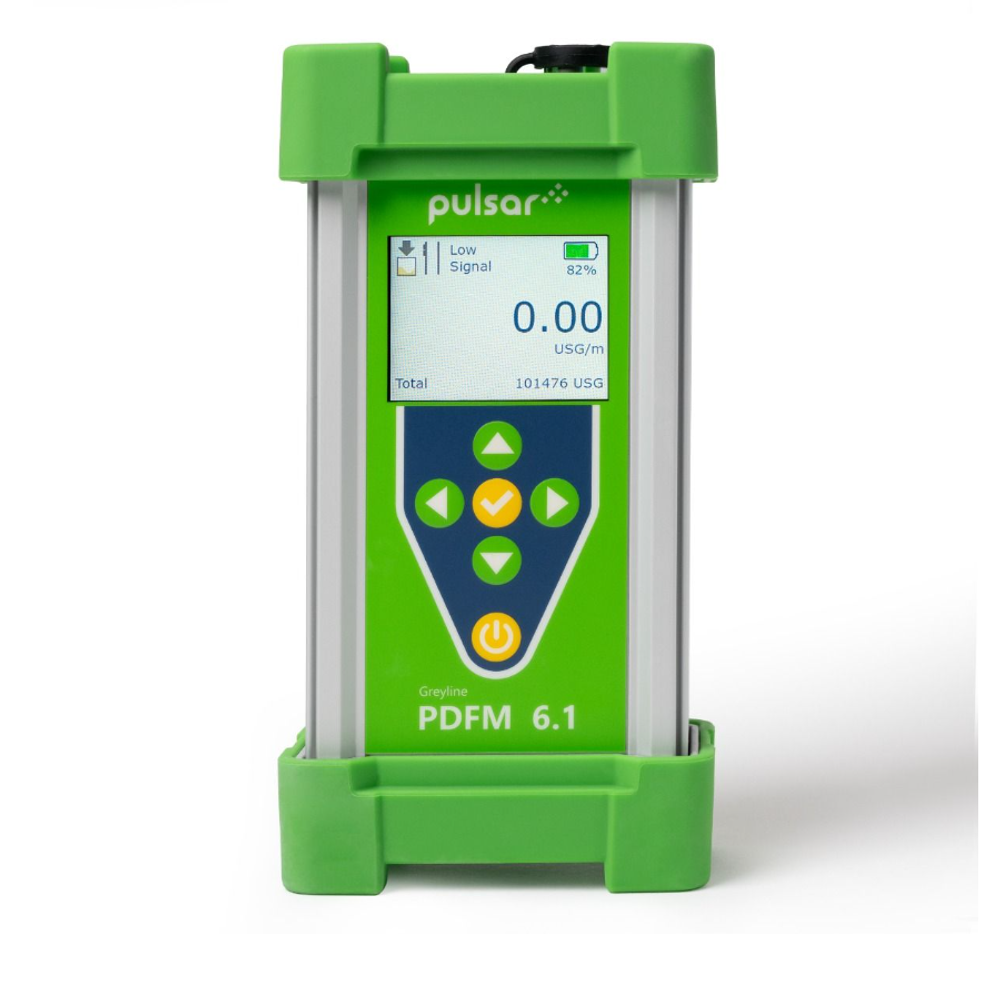

Electronics – IP67, portable extruded aluminum with protective silicone caps
Flow rate range – ± 0.1 to 40 ft/sec (± 0.03 to 12.2 m/sec) in most applications
Accuracy – ±2.0% of reading or ±0.1 ft/sec (±0.03 m/s), whichever is greater
Carry Case – IP67 with protective molded foam inserts for all transducer
combinations
Display – Color TFT LCD display, IPS type, 2.8” screen size, 320x240, 500 NITS
brightness
Power – Rechargeable Lithium polymer battery with up to 15 hours of continuous
operation
Datalogger – 12 million data point capacity
Extended Logging - Deploy in low-power state to greatly increase battery life when
log interval configured for 30s to 1hr
Calibration – Wet calibrated at factory. Built-in 5-key configuration
CE
